19" FRONTPANELS list prices excl. VAT - ask discount

When you want to fill up all the empty spaces in a 19" rack, you will need some 19" front panels or vent panels of 1 U or more units high.

1 U = 1 (rack)Unit = 44,45 mm = 1,75" = 1 HE

I. 19" PANELS in 1.5 mm thick steel - powder coated in black

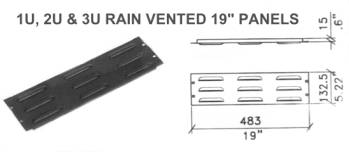

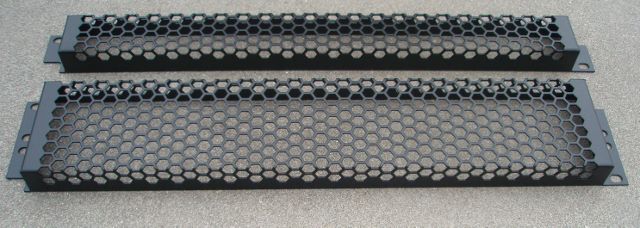

REF. DESCRIPTION LIST PRICE EDP05 19" panel 0,5U high black powder coated 8,88 €. EDP1 19" panel 1 U high black powder coated steel 8,08 €. EDP2 19" panel 2 U high black powder coated steel 10,56 €. EDP3 19" panel 3 U high black powder coated steel 13,04 €. EDP4 19" panel 4 U high black powder coated steel 15,52 €. EDP1V vented 19" panel 1U high black powder coated steel 14,13 €. EDP2V vented 19" panel 2U high black powder coated steel 17,30 €. EDP-1UVK rain vented panel1U high black powder coated steel 14,13 €. EDP-2UVK rain vented panel 2U high black powder coated steel 17,30 €. EDP-3UVK rain vented panel 3U high black powder coated steel 19,76 €. EDP1CS 1U high 19" security panel, 25 mm. deep, black steel 21,64 €. EDP2CS 2U high 19" security panel, 25 mm. deep, black steel 22,98 €.

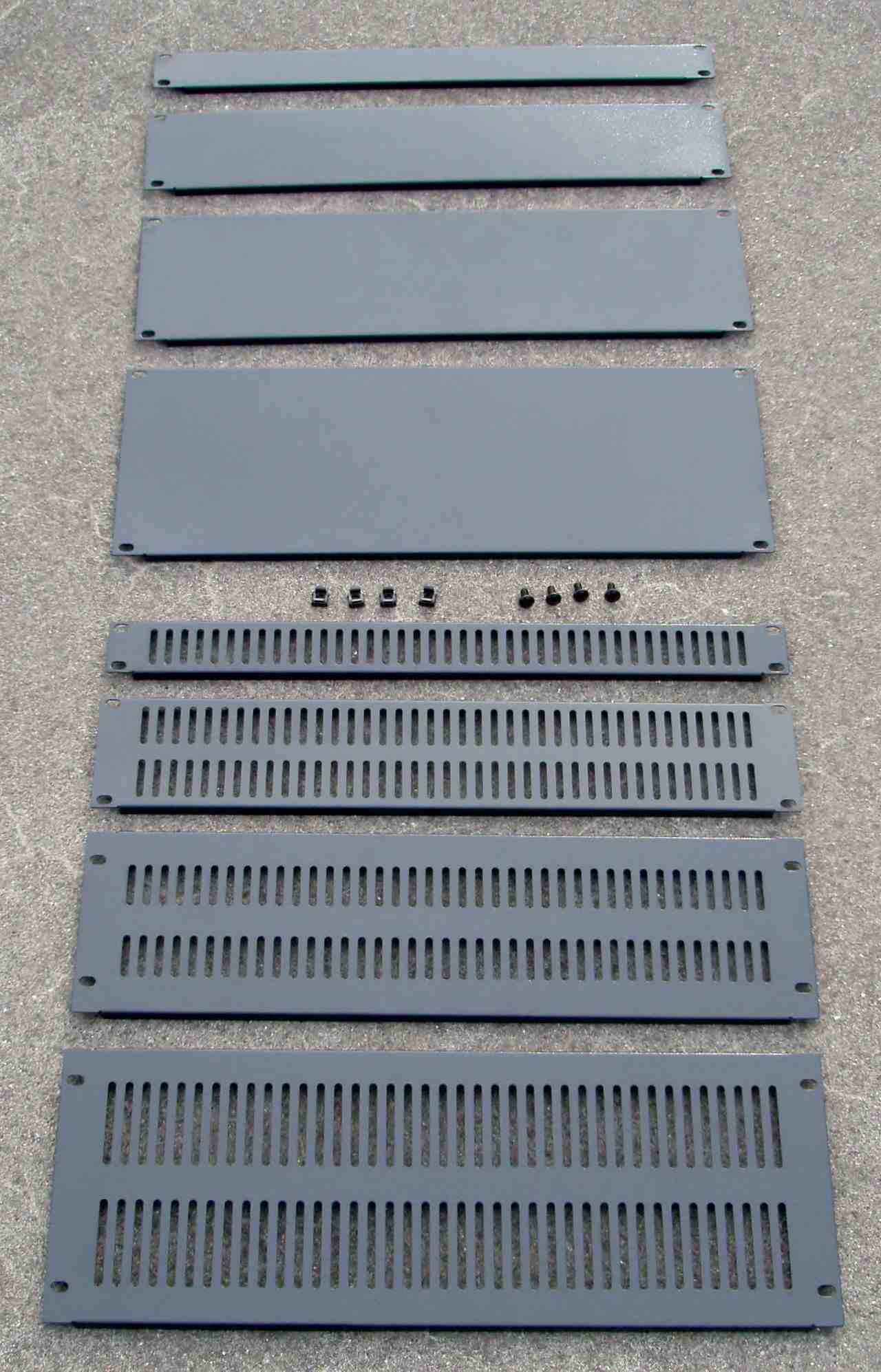

II. 19" PANELS in 1.2 mm thick steel - powder coated in black

REF. DESCRIPTION LIST PRICE PANEL1U 1 U 19" panel 1.2 mm thick black 5,00 € PANEL2U 2 U 19" panel 1.2 mm thick black 7,15 € PANEL3U 3 U 19" panel 1.2 mm thick black 9,30 € PANEL4U 4 U 19" panel 1.2 mm thick black 11,45 € cagenuts & screws included with the 1.2 mm thick panels PANEL1UV 1 U 19" panel 1.2 mm thick black vented 5,50 € PANEL2UV 2 U 19" panel 1.2 mm thick black vented 7,65 € PANEL3UV 3 U 19" panel 1.2 mm thick black vented 9,80 € PANEL4UV 4 U 19" panel 1.2 mm thick black vented 11,95 €

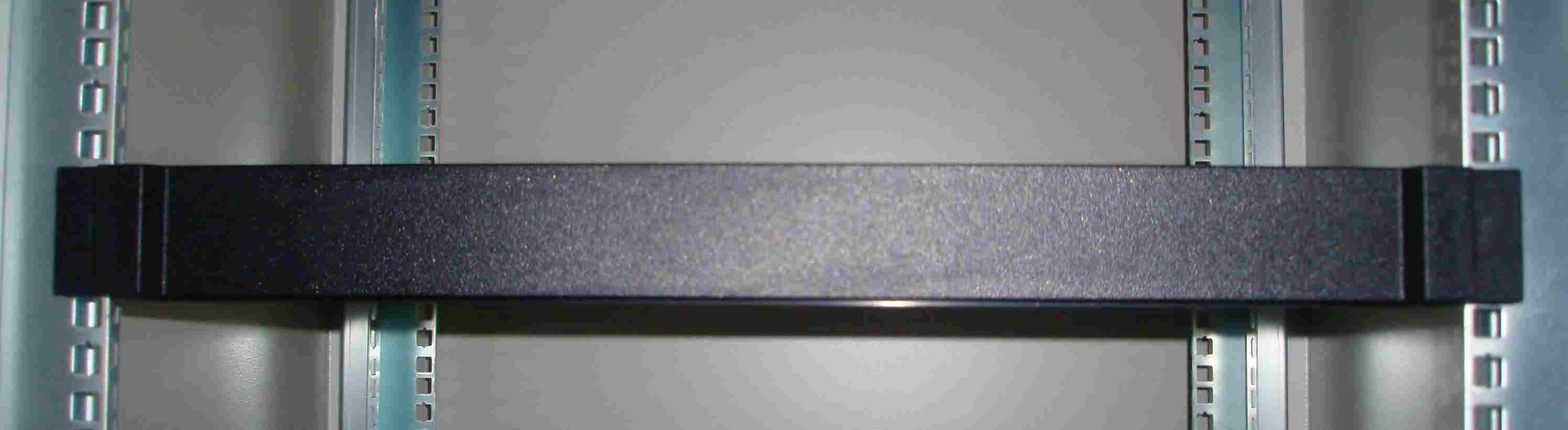

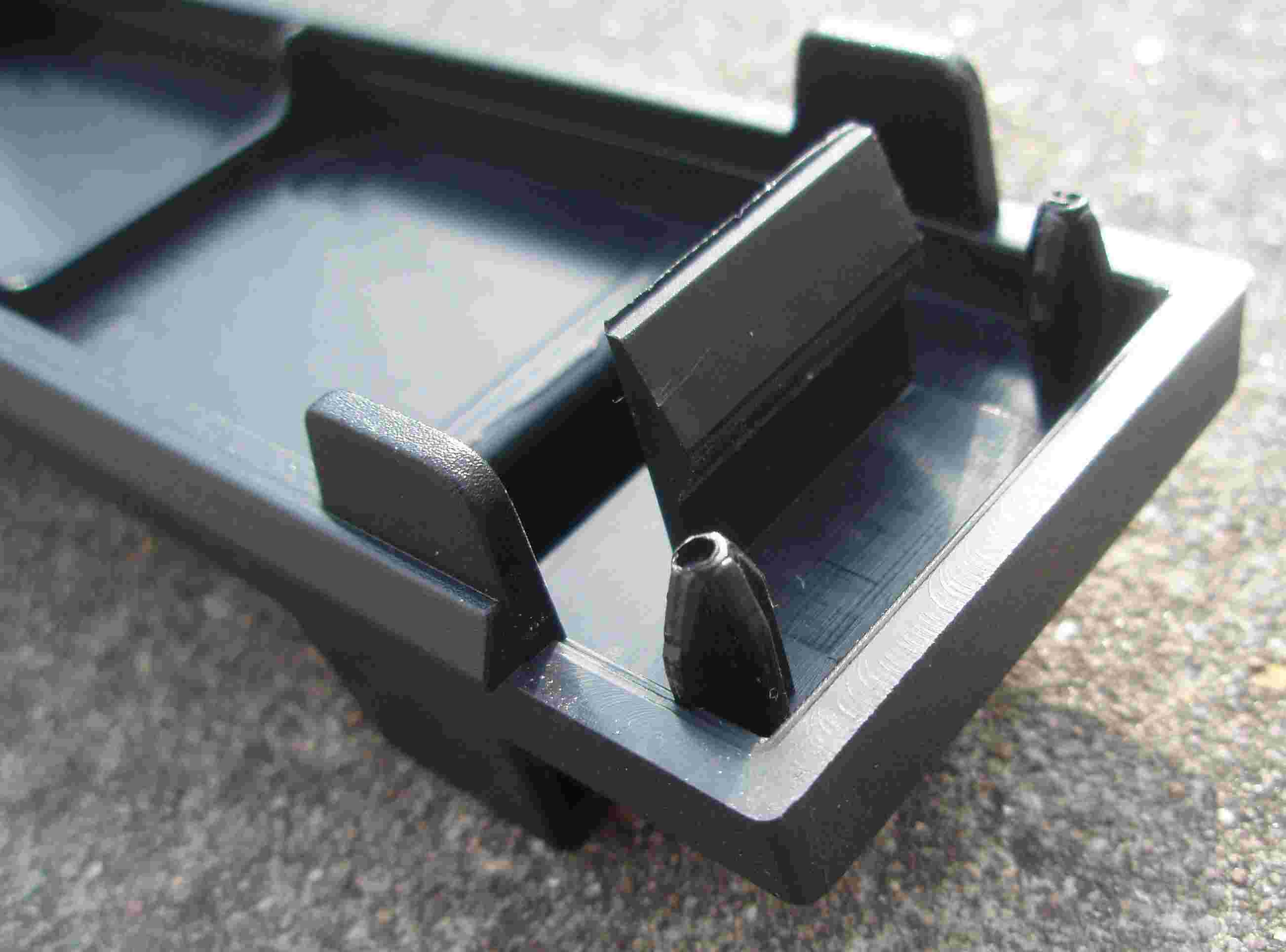

III. TOOL LESS 1U PANELS in black synthetic material with reinforcement ribs

	REF. DESCRIPTION LIST PRICE PANTL1U Tool less 1 U panel in black synthetic material 5,28 €

IV. 19" PANELS IN ANODISED ALUMINIUM and IN STEEL POWDER COATED IN WHITE-GREY

We have anodised aluminium 19" panels from 1 U up to 12U in 3 mm thick aluminium in stock and also blank panels in steel powder coated in the same white-grey colour as the ACCESS & ULTIMA racks.

Order Code Description & Material & Finish U Height List price in € PPS1 Blank Panel Steel Painted white-grey 1 17,33 PPS2 Blank Panel Steel Painted white-grey 2 18,59 PPS3 Blank Panel Steel Painted white-grey 3 19,88 PPS4 Blank Panel Steel Painted white-grey 4 21,12 PPS5 Blank Panel Steel Painted white-grey 5 22,41 PPS6 Blank Panel Steel Painted white-grey 6 23,73 PPS12 Blank Panel Steel Painted white-grey 12 33,75 PPA1 Blank Panel Aluminium Anodised 1 14,07 PPA2 Blank Panel Aluminium Anodised 2 20,66 PPA3 Blank Panel Aluminium Anodised 3 26,03 PPA4 Blank Panel Aluminium Anodised 4 28,80 PPA5 Blank Panel Aluminium Anodised 5 36,22 PPA6 Blank Panel Aluminium Anodised 6 40,80 PPA12 Blank Panel Aluminium Anodised 12 87,69

V. ELDECO 19" ALUSET FRONTPANELS

The high quality ALUSET frontpanels are durable, easy to work on, to make p.e. a cut-out for a monitor and require no extra finishing of any kind. Aluset is a special sandwich panel made 0,3 mm scratch-free PVC foil, then 0,5 mm. Aluminium, then 2 mm. polyethylene and finally 0,5 mm aluminium. The ALUSET 19" frontpanels are available in 13 sizes from 1 U up to 13 U in a structured black finish RAL-9011 but the following colours are also available within a week:

- RAL-9011 black (in stock) - RAL-9018 Soft white - RAL-1015 beige - RAL-5007 Brilliant bleu - RAL-2003 Orange - RAL-6021 Light green - RAL-7035 Light grey (limided stock) - RAL-7005 Dark grey - RAL-8016 Dark brown

REF. Description List Price ALUSET1 ALUSET 19" panel 1 U high 18,79€. ALUSET2 ALUSET 19" panel 2 U high 23,45€. ALUSET3 ALUSET 19" panel 3 U high 34,38€. ALUSET4 ALUSET 19" panel 4 U high 46,55€. ALUSET5 ALUSET 19" panel 5 U high 58,01€. ALUSET6 ALUSET 19" panel 6 U high 68,94€. ALUSET7 ALUSET 19" panel 7 U high 73,40€. ALUSET8 ALUSET 19" panel 8 U high 84,31€. ALUSET9 ALUSET 19" panel 9 U high 93,28€. ALUSET10 ALUSET 19" panel 10 U high 96,68€. ALUSET11 ALUSET 19" panel 11 U high 110,44€. ALUSET12 ALUSET 19" panel 12 U high 118,69€. ALUSET13 ALUSET 19" panel 13 U high 125,68€.
