19" rack lights & cabinet lights list prices excl. VAT - ask discount

I. 19" rack light with direct light cover

1 U shielded racklight to illuminate equipment situated below. Mattblack surface finish shade covers strip bulb and directs light downward avoiding any radiated glare. Including an on/off switch.

426/RL 19" 1U racklight with switch and lightcover at 76,85 €



II. Magnetic Internal Lighting Unit

A compact fluorescent cabinet light with on/off switch and mainssocket for additional equipment. Can be either mounted using the built in magnetic strip or screw fixed to standard 35 mm DIN rail.

2,5 mm² connectors for incoming power cable (not supplied)

Available with various socket styles:

Part Nr.
Description
Price in €

KL02510
Light with UK socket
155,48 €
*KL02500
Light with German socket
103,28 €
KL02501
Light with French/Belgian socket
103,28 €
*KL02505
Light with USA socket
99,66 €
*KL02502
Light with Swiss socket
155,48 €
KL02507
Light without a socket
142,56 €

* = not a stock item - price on demand

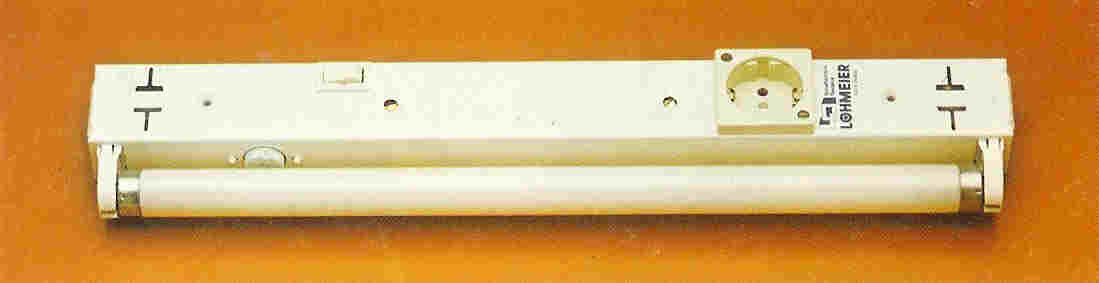

III. Internal cabinet Lighting Unit

These internal cabinet lighting units are equipped with a Schuko mains socket, an on/off switch and the metalwork needed to fix it into a 600 mm wide or 800 mm. wide cabinet. Mounted height is only 40 mm.
It is possible to swich the light on when you open the backdoor of a cabinet by using a doorswitch.

Part Nr.
Description
Price in €


SL470
Light with socket & switch 15W - 230V - L468 mm.
42,60 €
SL620
Light with socket & switch 18W - 230V - L620 mm.
43,47 €
SL166
Door contact switch (2 way contact) + fixings
22,25 €

Other racklights, larger, smaller, with parallel connection cables, with saving lamps or even an integrated door switch are also possible but not a stock item.

Also light signal towers like SG50 and SG35 are possible but not a stock item.
