19" Universal L-supports & fixed shelveslist prices excl. VAT

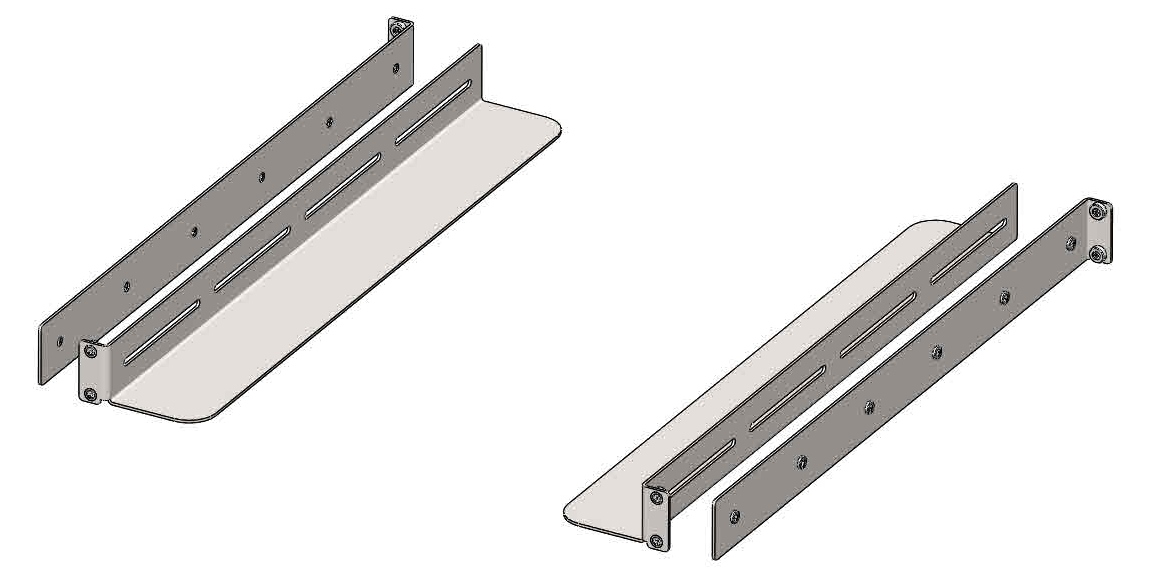

UNIVERSAL 19" L-shape SUPPORTS

Ref. L400, 1U high, 400 mm. deep adjustable L-support, that supports heavy equipment over 70 mm on both sides, powder coated in black (RAL9005), with 2 mounting brackets of 1U at the backside, allowing fixation in any 19" rack on the market where the front to rear spacing between the 19" profiles in not higher than 667 mm, at 45,73 €.

Ref. L500, 1U high, 500 mm. deep adjustable L-support, that supports heavy equipment over 70 mm on both sides, powder coated in black (RAL9005), with 2 mounting brackets of 1U at the backside, allowing fixation in any 19" rack on the market where the front to rear spacing between the 19" profiles in not higher than 867 mm, at 47,31 €.

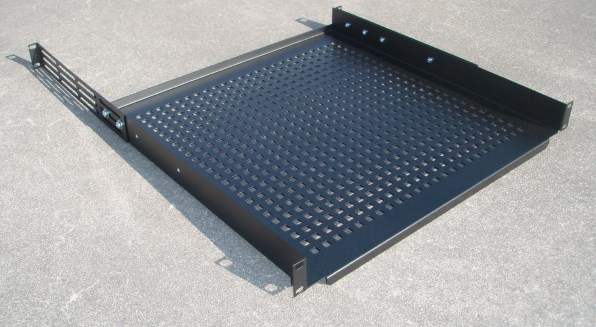

UNIVERSAL 19" SHELVES

These universal fixed shelves of 1U and 2U can be fixed in all the 19" racks available on the market with 2 pairs of 19" mounting angles. These shelves have 2 adjustable angles at the backside to be fixed at the rear side. The adjustable vented fixed shelves are powder coated in black (RAL9005) and support easily an equipment load of 60 kg.

Ref. P255, 2U high, 550 mm. deep adjustable vented fixed shelf, powder coated in black (RAL9005), with 2 mounting brackets of 1U at the backside, allowing fixation in any 19" rack on the market where the front to rear spacing between the 19" profiles in not higher than 702 mm, at 54,19 €.

(end of series - 5 pieces available - special liquidation price on request)

Heavy duty upto 250 kg Universal Fixed Adjustable Depth Shelves

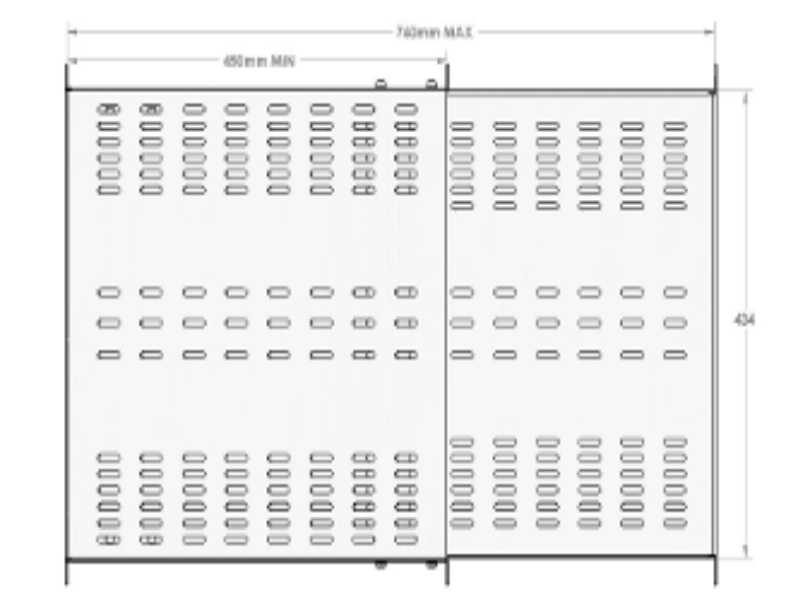

Designed to mount into any EIA 310-D / IEC 297 compliant cabinet, these shelves are adjustable in depth to suit mounting angle centres set at between 450mm and 760mm.

Easy to use, each shelf comes with full assembly and installation instructions.
Installation is as simple as:

Install cage nuts in the appropriate positions in the front and rail 19-inch rails.
Adjust the shelf depth as appropriate a lightly fasten the inner shelf retaining screws.
Screw the shelf to the front and rear 19-inch rails.
Tighten up the inner shelf retaining screws as appropriate. Retaining screws locations are provided on the top surface of the shelf for easy access. If the top surface fixings points are inconvenient then alternate side fixing locations are provided.
