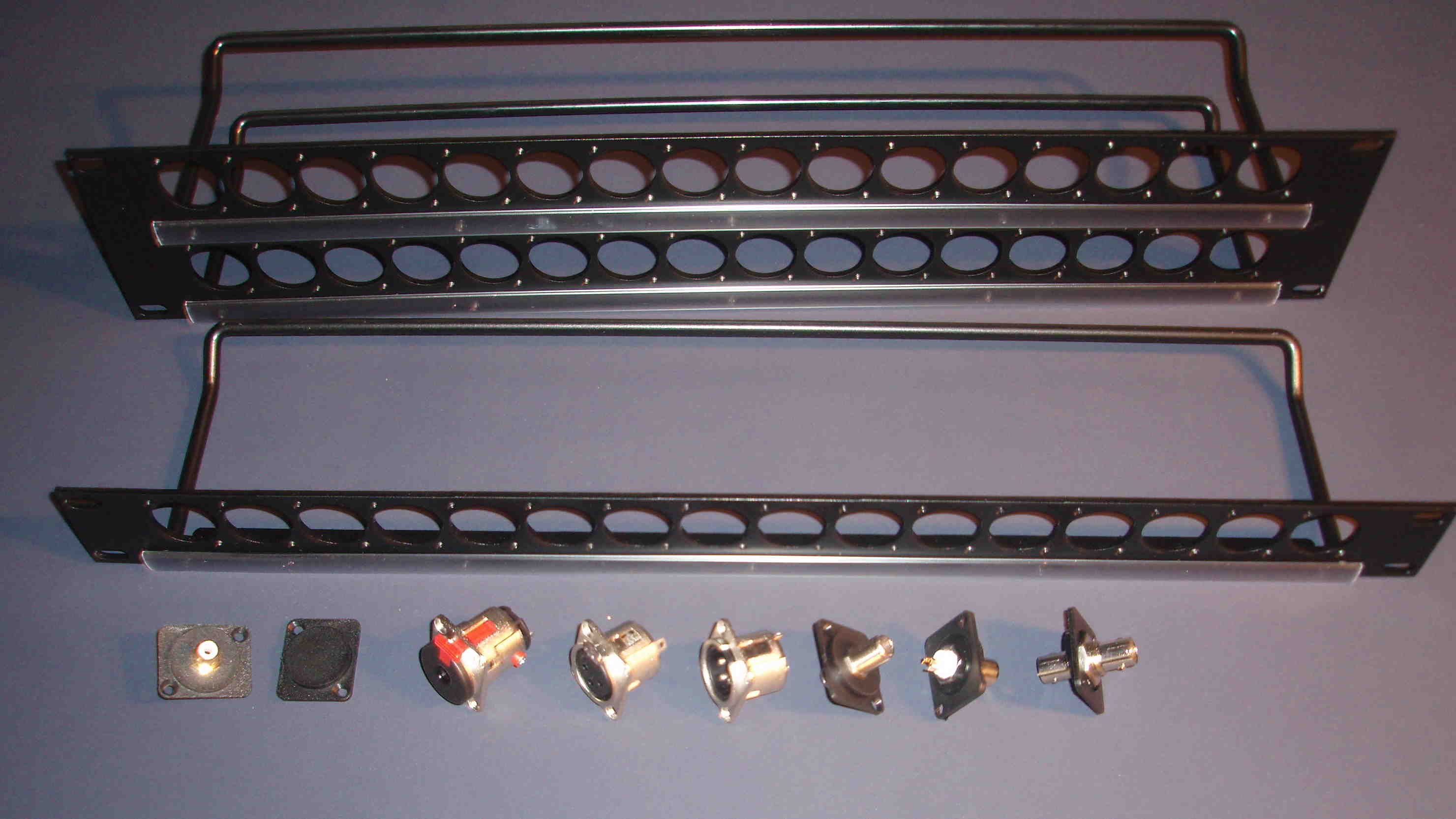

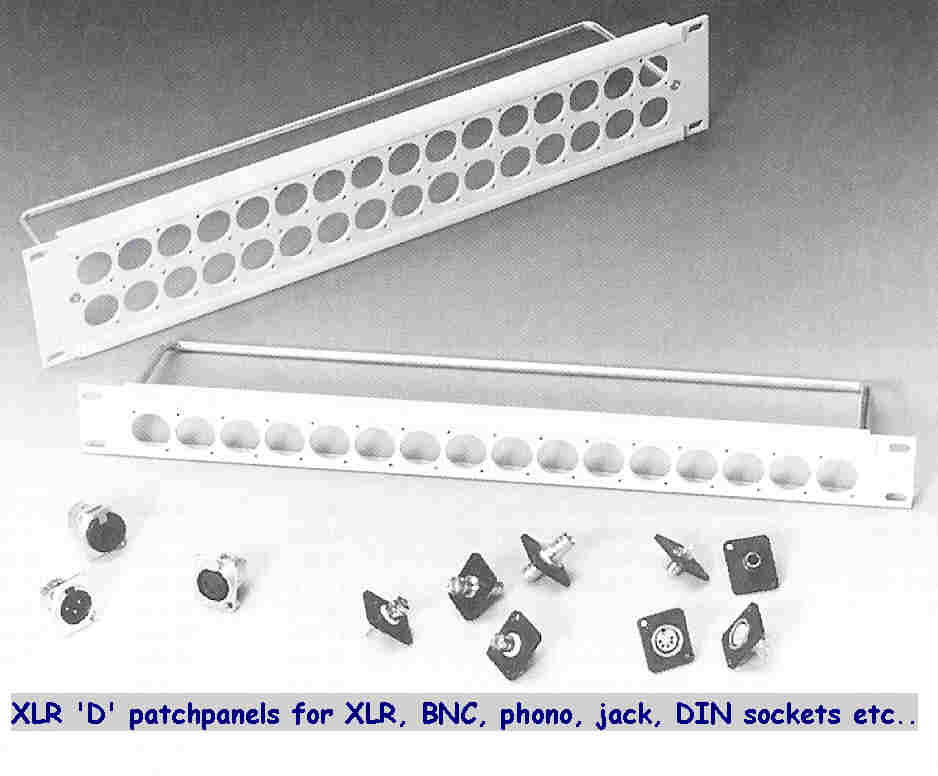

There are 3 sizes of 19" XLR 'D' series patchpanels, manufactured from rigid aluminium extrusion. The panels are arranged to accommodate 16 modules in a row which is equal to 1U. All panels are finished in Dawn Mist semi-gloss paint and are equiped with designation strips and lacing bars.
All screw holes are tapped M3 screwholes so that pozi M3
These 'D' series patchpanels would normally accommodate Neutrik D series connectors.
With the use of these modules, termination panels can be customer configured.
|
Part
Nr.
|
Description
|
Net
price in €
|
|
D-series
patchpanels
|
||
|
XTP160
|
1U 19" panel with 16 D-series cut outs |
49,90
€
|
|
XTP320
|
2U 19" panel with 32 D-series cut outs |
76,82
€
|
|
XTP480
|
3U 19" panel with 48 D-series cut outs |
117,25
€
|
|
Connectors
for the D-series patchpanels
|
||
|
BD-TPM01
|
D-series blank |
1,56
€
|
|
BD-TPM02
|
D-series DIN socket 180° |
6,45
€
|
|
BD-TPM03
|
D-series DIN socket 240° |
6,45
€
|
|
BD-TPM04
|
D-series BNC solder socket |
5,90
€
|
|
BD-TPM05
|
D-series BNC-BNC socket-socket |
7,31
€
|
|
BD-TPM06
|
D-series phono socket |
3,42
€
|
|
BD-TPM07
|
D-series ST back to back |
9,05
€
|
|
BD-TPM08
|
D-series F connector back to back |
6,20
€
|
|
BD-TPM09
|
D-series N connector back to back |
24,41
€
|
|
NC3FDL1
|
Female 3 pin XLR panel Nickel |
5,88
€
|
|
NC3MDL1
|
Male 3 pin XLR panel Nickel |
5,40
€
|
|
NC4FDL1
|
Female 4 pin XLR panel Nickel |
8,48
€
|
|
NC4MDL1
|
Male 4 pin XLR panel Nickel |
6,87
€
|
|
NC5FDL1
|
Female 5 pin XLR panel Nickel |
13,39
€
|
|
NC5MDL1
|
Male 5 pin XLR panel Nickel |
10,46
€
|
|
NC6FDL1
|
Female 6 pin XLR panel Nickel |
17,97
€
|
|
NC6MDL1
|
Male 6 pin XLR panel Nickel |
14,38
€
|
|
NC7FDL1
|
Female 7 pin XLR panel Nickel |
21,77
€
|
|
NC7MDL1
|
Male 7 pin XLR panel Nickel |
18,12
€
|
|
NJ3FP6C
|
Jack type 316 panel connector Nickel |
7,86
€
|
|
M3
screws to fix the connectors to the patchpanel
|
||
|
BD-TPSCW
|
100 pcs. M3 x 8 mm. pozi screws |
5,23
€
|
 |
 |
