19" FANPANELS, FANUNITS & FANSlist prices excl. VAT - ask discount

I. 19" Fanpanels

The ELDECO 19" fanpanels are equiped with SUNON fans type DP-201-A, 220V, noise 41 dBA, size 120 x 120 x 38 mm, free air flow 153 m³/h.

On demand we can make fanpanels with the low noise SUNON DP-203-A fan - only 31 dBA but the free air flow is only 93 m³/h.

EDP-3V-1 3U fanpanel with 1 fan at 84,63 €.
EDP-3V-2 3U fanpanel with 2 fans at 133,07 €.
EDP-3V-3 3U fanpanel with 3 fans at 181,48 €.

II. 19" Fanunits

19" mounted fantray

When some equipment in the rack heats up a lot, then it is better to use a 19" mounted fantray on the spot with a lot of heat. This fantray exists in 2 versions: with 3 fans and with 6 fans.

Axial fans, ball bearing with service life of 25000 h at 25°C, UL approved, with optical indicator
in the aluminium frontpanel.

Air flow 486 m³/h for IVU3. Noise 55 dbA.
Air flow 972 m³/h for IVU6. Noise 57 dbA.
IVU3 19" fantray, 1 U high, with 3 axial fans, 208 mm. deep, at 293,41€.
IVU6 19" fantray, 1 U high, with 6 axial fans, 457 mm. deep, at 494,21€.

III. Temperature regulators & Hygrostat

 TY11B Dual temperature regulator for heater and fan with NO and NC contact in 1 case, with 2 thermostats in 1 case so that cooling and heating can be switched independently from each other, contact 250VAC, 10A, long life >100000 cycles, 2 adjustable temperature regulations between 0 and +60°C, dimensions 50 mm. wide, 67 mm high, 46 mm. deep, at 68,10 €
TY90B Temperature regulator for heater and fan with change-over contact 250VAC, 10A, long life >100000 cycles, adjustable temperature regulation between +5 and +60°C, dimensions 50 mm. wide, 67 mm high, 38 mm. deep, at 67,50 €
GY90B Mechanical adjustable relative humidity regulator for heater and fan with change-over contact 250VAC, 10A, long life >100000 cycles, adjustable relative humidity regulation between 35% and +95% RH, dimensions 50 mm. wide, 67 mm high, 38 mm. deep, at 172,38€
FIXDIN direct fixing of small appliances and 35 mm DIN RAIL that can be fixed in cabinets with the self-adhesive surface at the backside or simply with 2 screws on a mounting plate, dimensions 43 mm x 38 mm x 14 mm deep, at 23,14 €

IV. 19" Fan units with integrated thermostat

 TCF03 1U high temperature controlled fan unit with 3 ball-bearing fans, free air flow 486 m³/h, with integrated thermostat 0 - 60°C, with 230VAC C14 connector and cord at the backside, Noise level 55 dB(A), dimensions 1U high, 430 mm wide, 208 mm deep at 311,86 €
TCF06 1U high temperature controlled fan unit with 6 ball-bearing fans, free air flow 972 m³/h, with integrated thermostat 0 - 60°C, with 230VAC C14 connector and cord at the backside, Noise level 57 dB(A), dimensions 1U high, 430 mm wide, 330 mm deep at 547,64€
TCF09 1U high temperature controlled fan unit with 9 ball-bearing fans, free air flow 1458 m³/h, with integrated thermostat 0 - 60°C, with 230VAC C14 connector and cord at the backside, Noise level 58 dB(A), dimensions 1U high, 430 mm wide, 452 mm deep at 855,94€

V. Low cost 19" fan units & temperature controlled fan units with LCD display

TNV301-7A2 19" fanunit with 2 fans, with On/Off light switch, with a cable C14 to UTE/SCHUKO, powder coated in black, at 102,06 €.

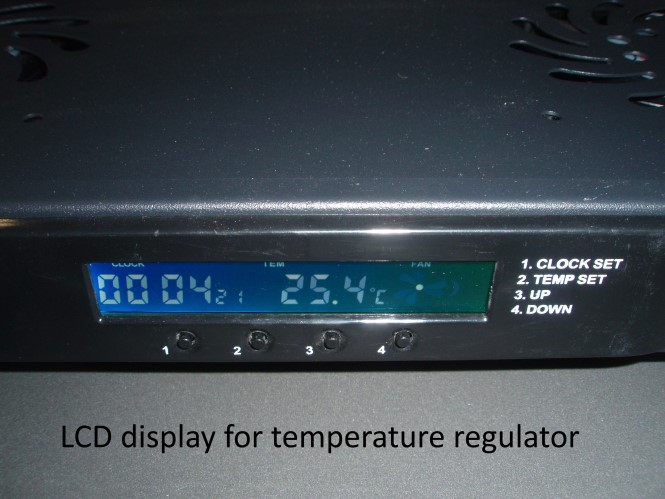

TNV301-7B2 19" fanunit with 2 fans, with On/Off light switch, with 1 meter cord with temperature sensor, with an LCD display to set a temperature level of the temperature sensor and to switch the fans on and off, with a cable C14 to UTE/SCHUKO, powder coated in black, at 175,00 €.

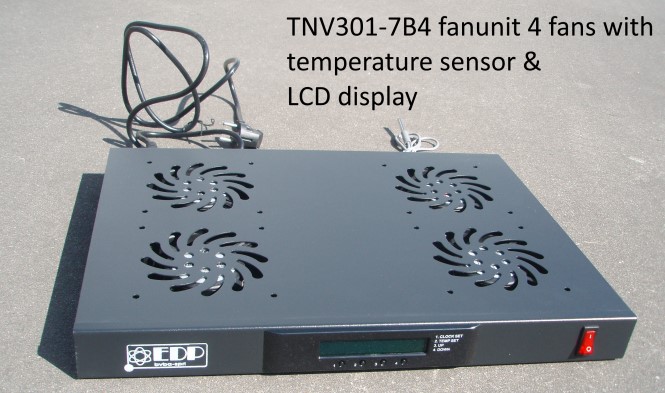

TNV301-7B4 19" fanunit with 4 fans, with On/Off light switch, with 1 meter cord with temperature sensor, with an LCD display to set a temperature level of the temperature sensor and to switch the fans on and off, with a cable C14 to UTE/SCHUKO, powder coated in black, at 234,85 €.

VI. IP54 & IP55 Fanunits and exit filters

IP54FAN800 IP54 fan with filter 230VAC 97x97 mm, 45 mm deep,free air flow 21m³/h at 97,36 €
IP54FAN801 IP54 fan with filter 230VAC 125x125 mm, 58 mm deep,free air flow 55m³/h at 109,20 €
IP54FAN802 IP54 fan with filter 230VAC 176x176 mm, 86 mm deep,free air flow 102m³/h at 129,78 €
IP54FAN804 IP54 fan with filter 230VAC 176x176 mm, 95 mm deep,free air flow 200m³/h at 202,84 €
IP54FAN803 IP54 fan with filter 230VAC 250x250 mm, 65 mm deep,free air flow 300m³/h at 376,02 €
IP54FAN805 IP54 fan with filter 230VAC 250x250 mm, 107 mm deep,free air flow 550m³/h at 283,32 €

IP54FL800 IP54 exit filter, 97x97 mm, 16 mm deep in the enclosure, at 22,24€
IP54FL801 IP54 exit filter, 125x125 mm, 16 mm deep in the enclosure, at 27,46€
IP54FL802 IP54 exit filter, 176x176 mm, 16 mm deep in the enclosure, at 31,58€
IP54FL803AN804 IP54 exit filter, 250x250 mm, 22 mm deep in the enclosure, at 122,08

VII. Spare fans & Accessories
DP201A 120x120x38 mm fan, air flow 153m³/h, 41 dBA, at 33,22 €.
DP203A 120x120x38 mm fan, air flow 93m³/h, 33 dBA, at 39,42 €.
D1/2/3 filter & filterholder120 x 120 mm, at 4,69 €.
B3 metal finger guard for fan of 120x120 mm at 1,93 €.
A2/10 1000 mm connection cord with fan connector at 2,23 €.
SF23080A 80x80x38 mm fan, air flow 51 m³/h, 31dBA, at 20,98 €.
Other fans, DC fans, cabinet heaters, heat-exchangers, rack-coolers & rack air conditioning are also available, on demand. Download our pdf-catalogue by puching here or on the picture.

VIII. Cabinet heaters

The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and even temperature is ensured. The heaters are designed for permanent operation. Heating element is a PTC resistor with temperature limiting. The body is an extruded aluminium profile with clip for 35 mm DIN rail EN60175.
Operation voltage: 120 - 240V AC (min. 110V, max. 265V)
Type
Description
width in mm.
Height in mm.
Depth in mm.
Price in €/piece
HG30
Cabinet Heater 30W
70
65
50
33,62
HG45
Cabinet Heater 45W
70
65
50
35,43
HG60
Cabinet Heater 60W
70
140
50
48,95
HG75
Cabinet Heater 75W
70
140
50
51,75
HG100
Cabinet Heater 100W
70
140
50
54,22
